B47 pneumatic breaker JACK hammer

B47 pneumatic pick is a tool powered by compressed air, which is distributed to both ends of the cylinder body by a cutting wheel. The hammer undergoes reciprocating motion and impacts the tail of the steel chisel through a cushion hammer, chiseling the steel chisel into the concrete layer and splitting it into blocks. It has significant characteristics such as low vibration, fast crushing speed, safe use, and flexible operation

Model:
B47
Brand:
kai tuo

Quantity:
Availability:





Inquire Add to Basket

Product Description

B47 pneumatic pick is a tool powered by compressed air, which is distributed to both ends of the cylinder body by a cutting wheel. The hammer undergoes reciprocating motion and impacts the tail of the steel chisel through a cushion hammer, chiseling the steel chisel into the concrete layer and splitting it into blocks. It has significant characteristics such as low vibration, fast crushing speed, safe use, and flexible operation.

Product Model: B47

Piston diameter (mm): 47.6

Piston stroke (mm): 100

Strike frequency (b.p.m.): 1400

Weight (kg): 23.5

Length (mm): 550

Tracheal inner diameter (R/Min): 19

Drill tail size (mm): 25*105

Inlet size (P/T): 3/4

B47 pickaxe adopts mature technology, and is a small breaking tool powered by compressed air.

B47 pneumatic pick is a tool powered by compressed air. The compressed air is distributed to both ends of the cylinder by cutting wheel, so that the hammer body carries out reciprocating motion through the cushion hammer to impact the tail of the steel drill, and the steel drill is chiseled into the concrete layer, so that it is split into blocks. With small vibration, fast crushing speed, safe use, flexible operation and other remarkable characteristics. B47 pneumatic pick

working principle

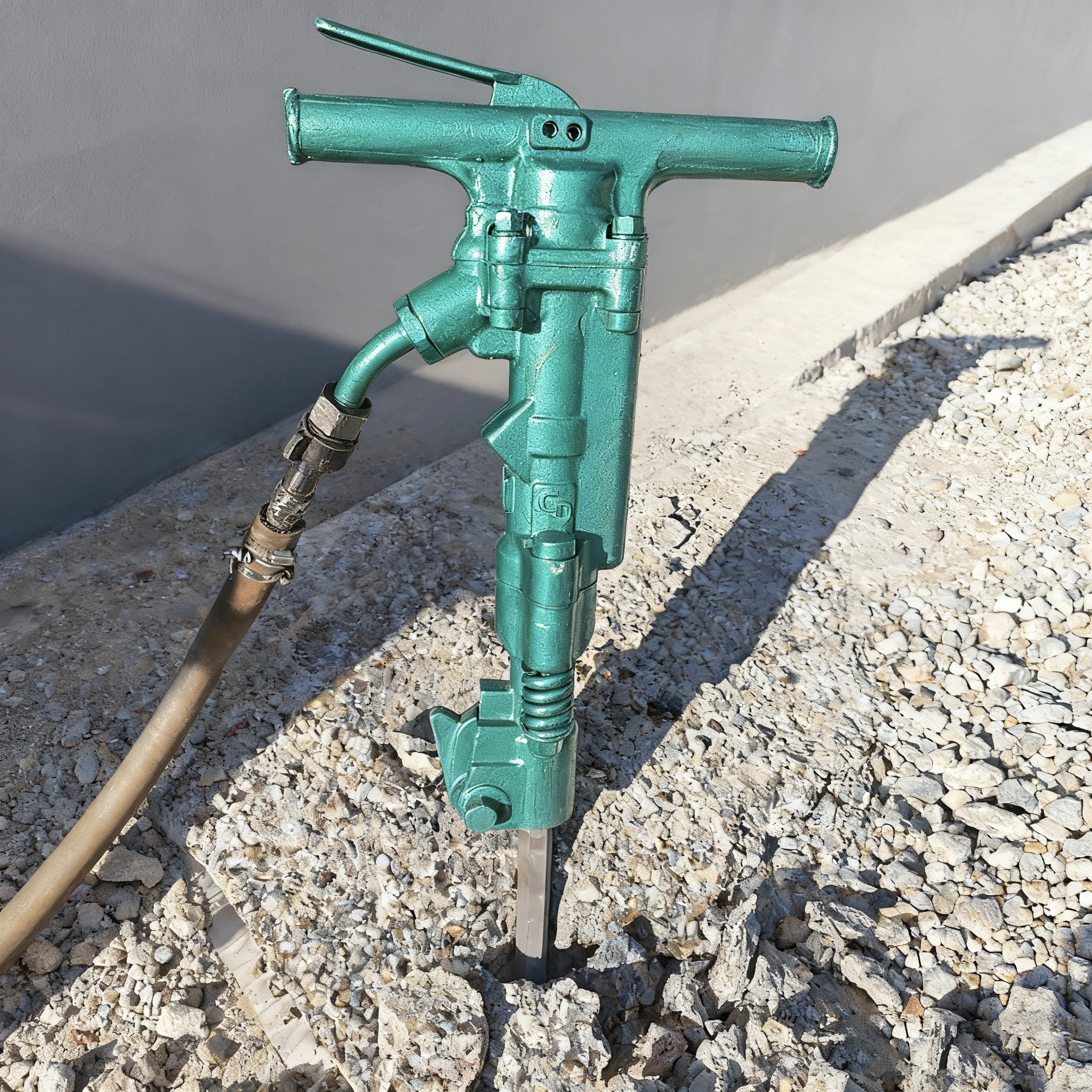

The ideal tool for foundation construction

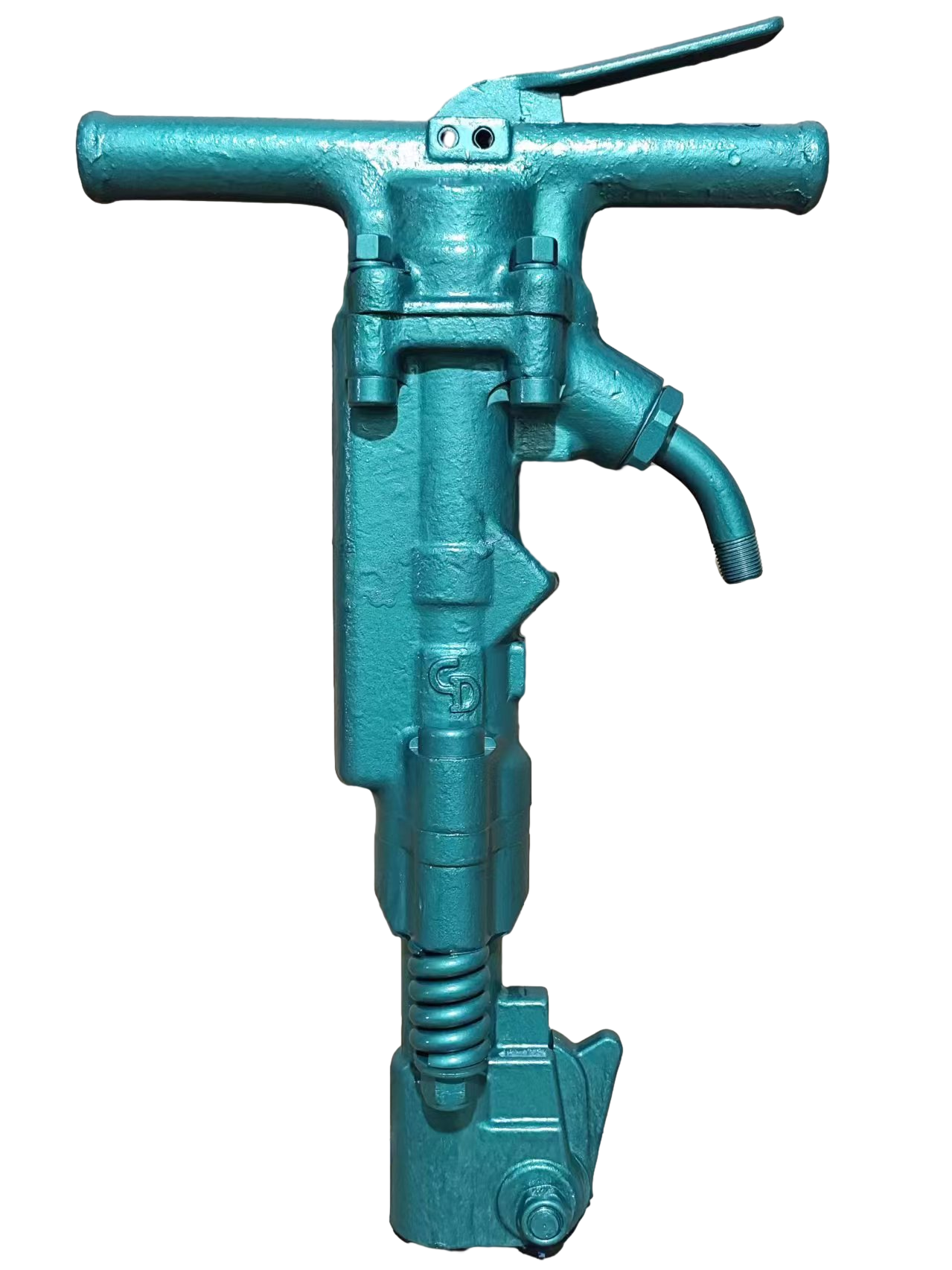

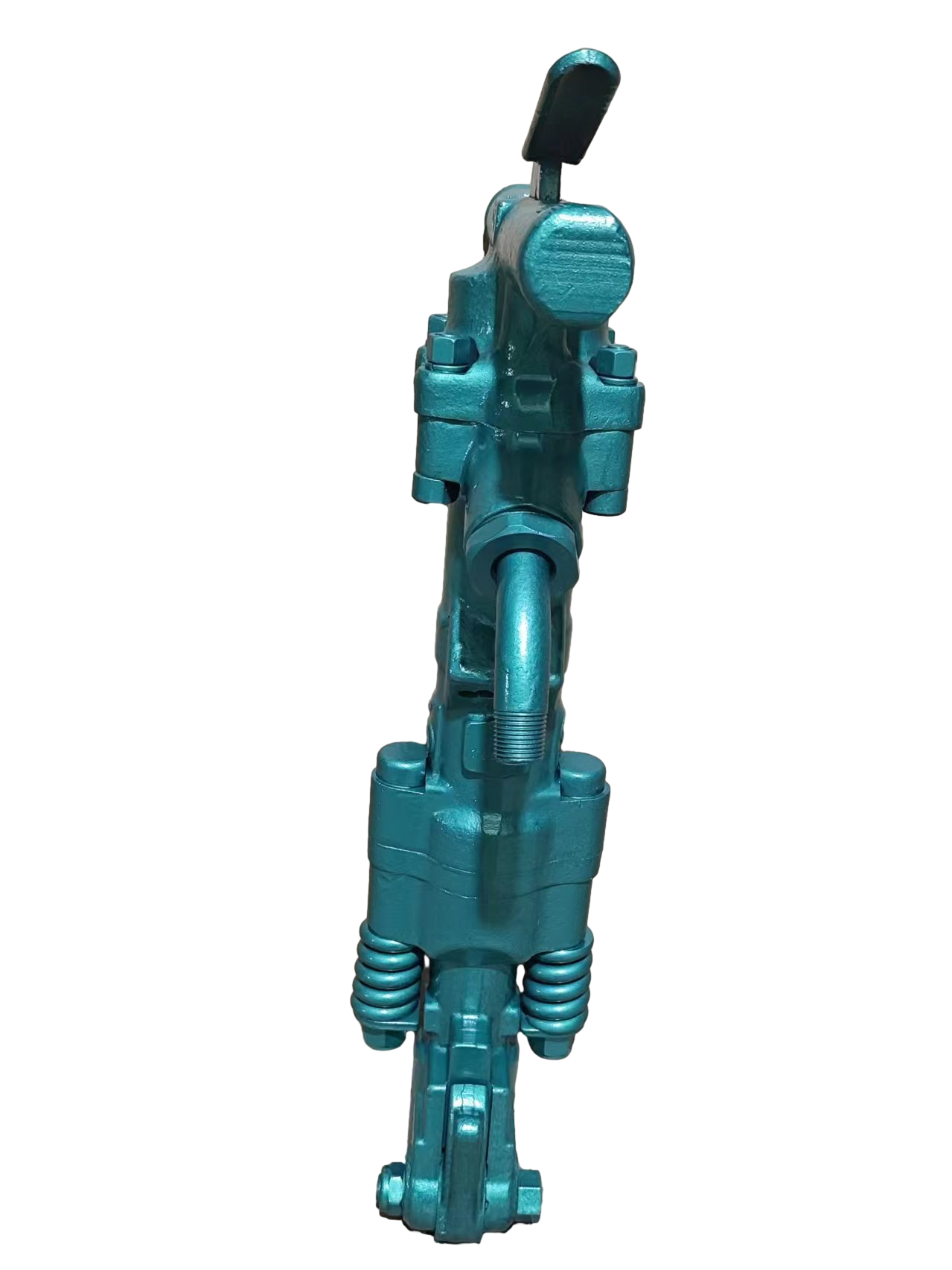

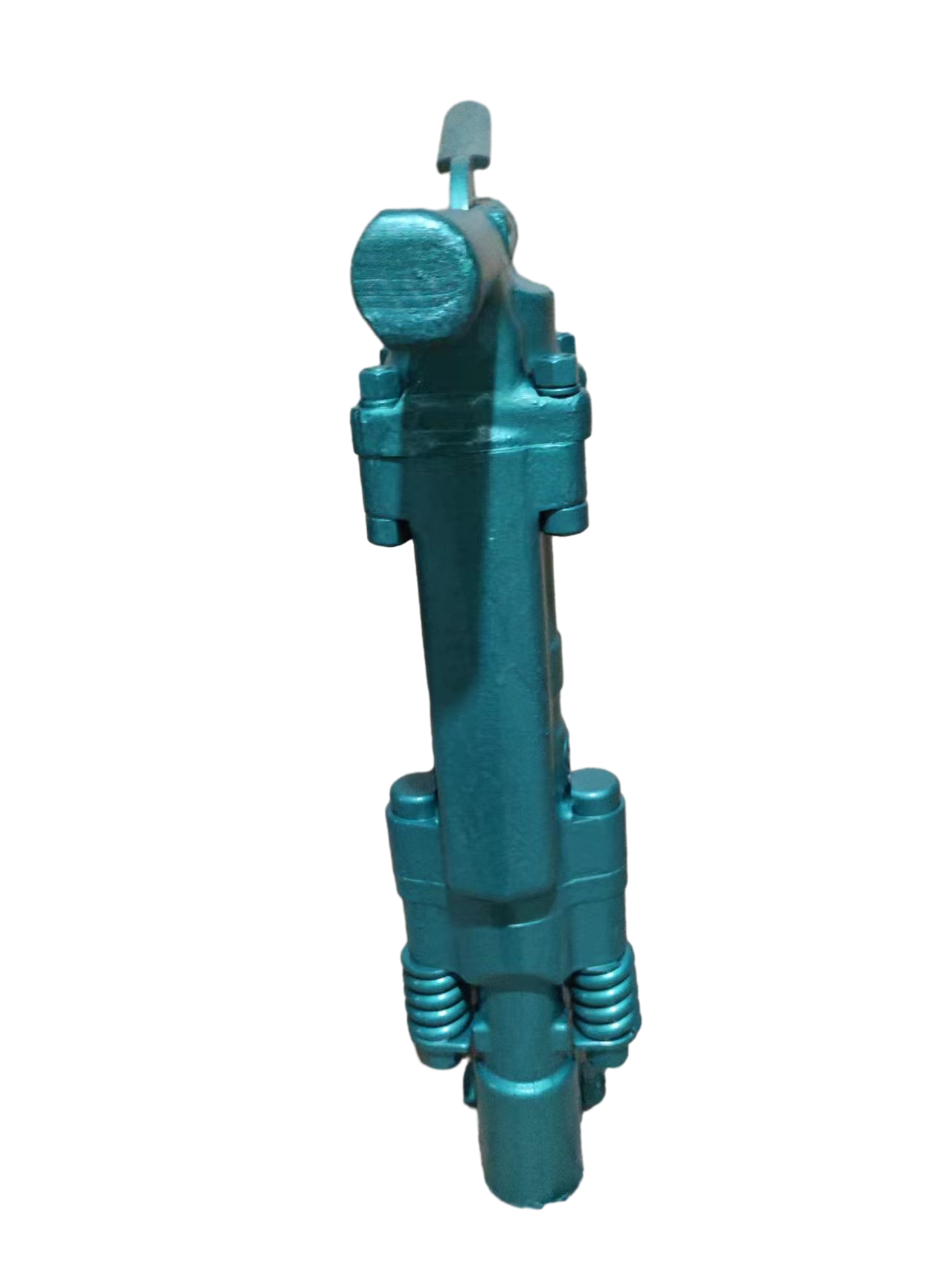

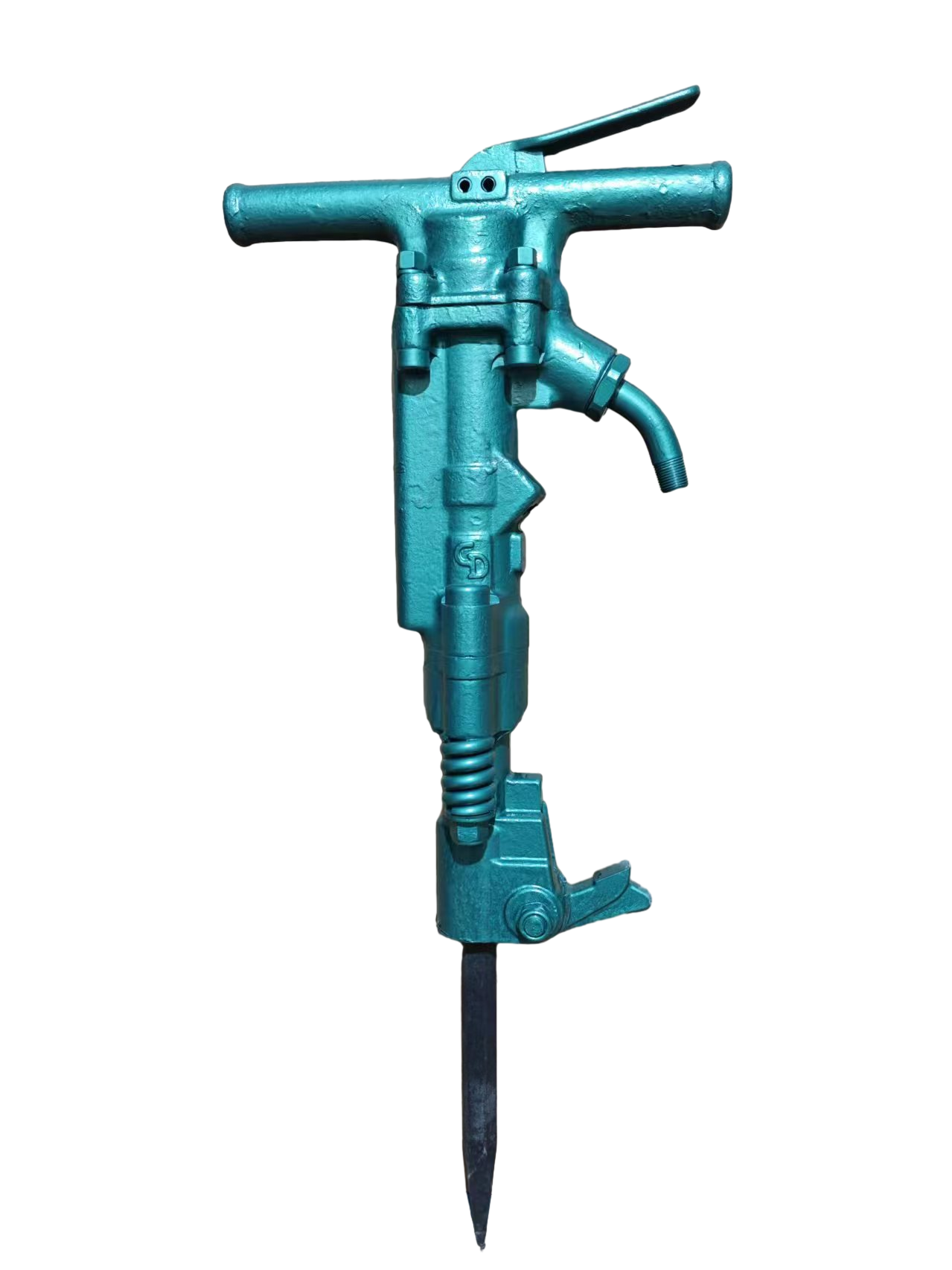

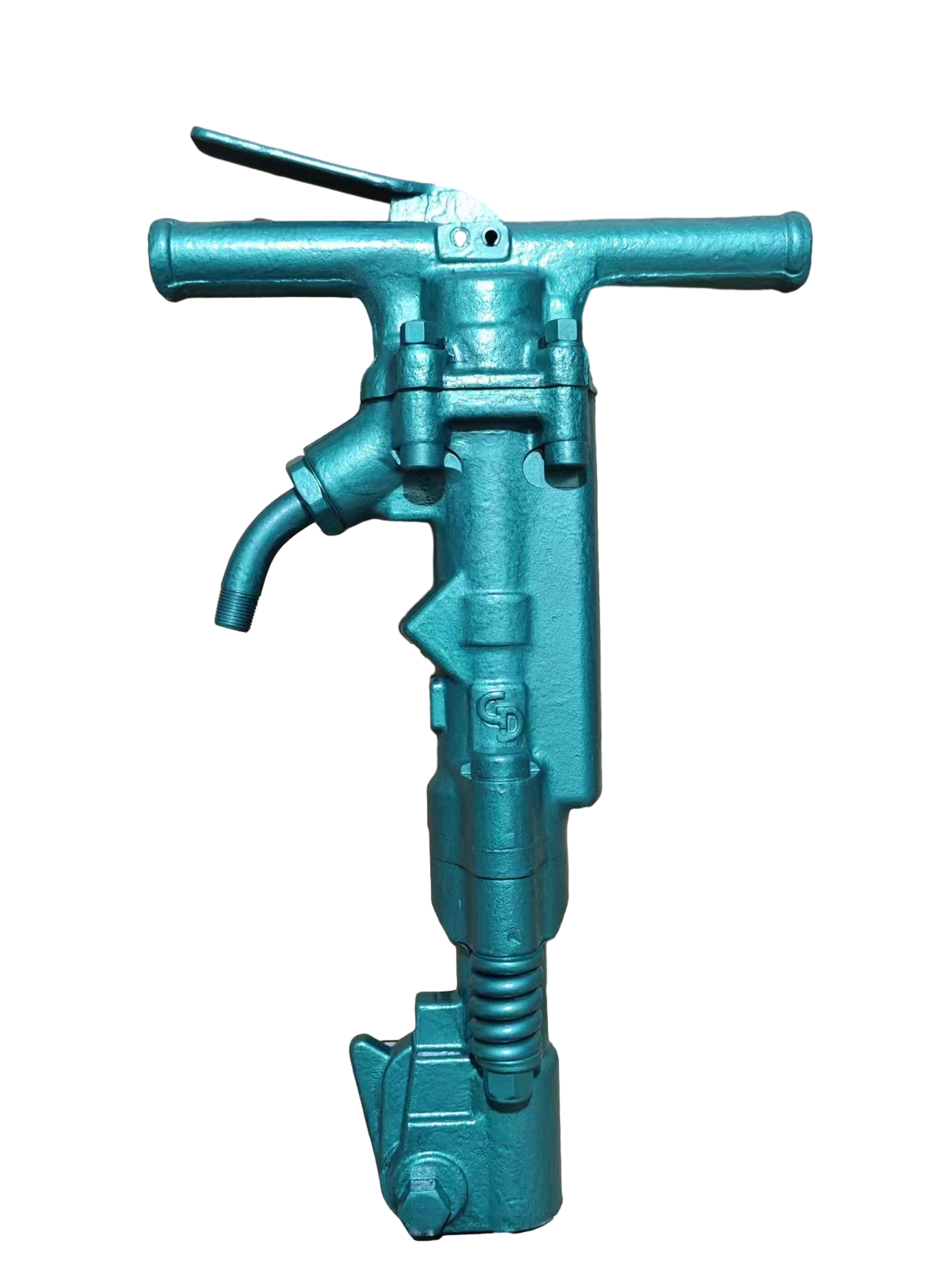

B47 Handheld Jack Hammer Rock Breaker Hammer

More horsepower, higher efficiency and longer life

Extra large. Extra thick. Crushing work of extra hard objects

Your good helper

Main parameters of air pick products

Product name	B47
Application	Construction Crushing
Piston Diameter	47.6 mm
Piston Stroke	100 mm
Percussive Frequency	1400 B.P.M
Weight	21.5kg
Length	550mm
Air Tube Size	19mm
Shank Size	R25*105mm
After-sales Service Provided	Online support

OUR ADVANTAGES

TRUSTWORTHY

kaituo Machinery focuses on product quality and user experience

High quality material

The product is forged from ultra hard steel, with quality first and customer foremost. Based on innovation and quality

One machine for multiple uses

Especially suitable for oversized. Extra thick. It is an ideal tool for the construction of mining, bridge dyeing, road and municipal infrastructure projects.

Easy inspection and repair

Product horsepower, higher efficiency, longer life, easy access, universal accessories

Powerful power

Crushing tools powered by compressed air, can efficiently complete the crushing work of reinforced concrete, rock, etc.

Factory direct sales

Factory direct sales ensure quality and can also solve technical problems. We have rich production experience and have become a leading presence in the industry

certificate

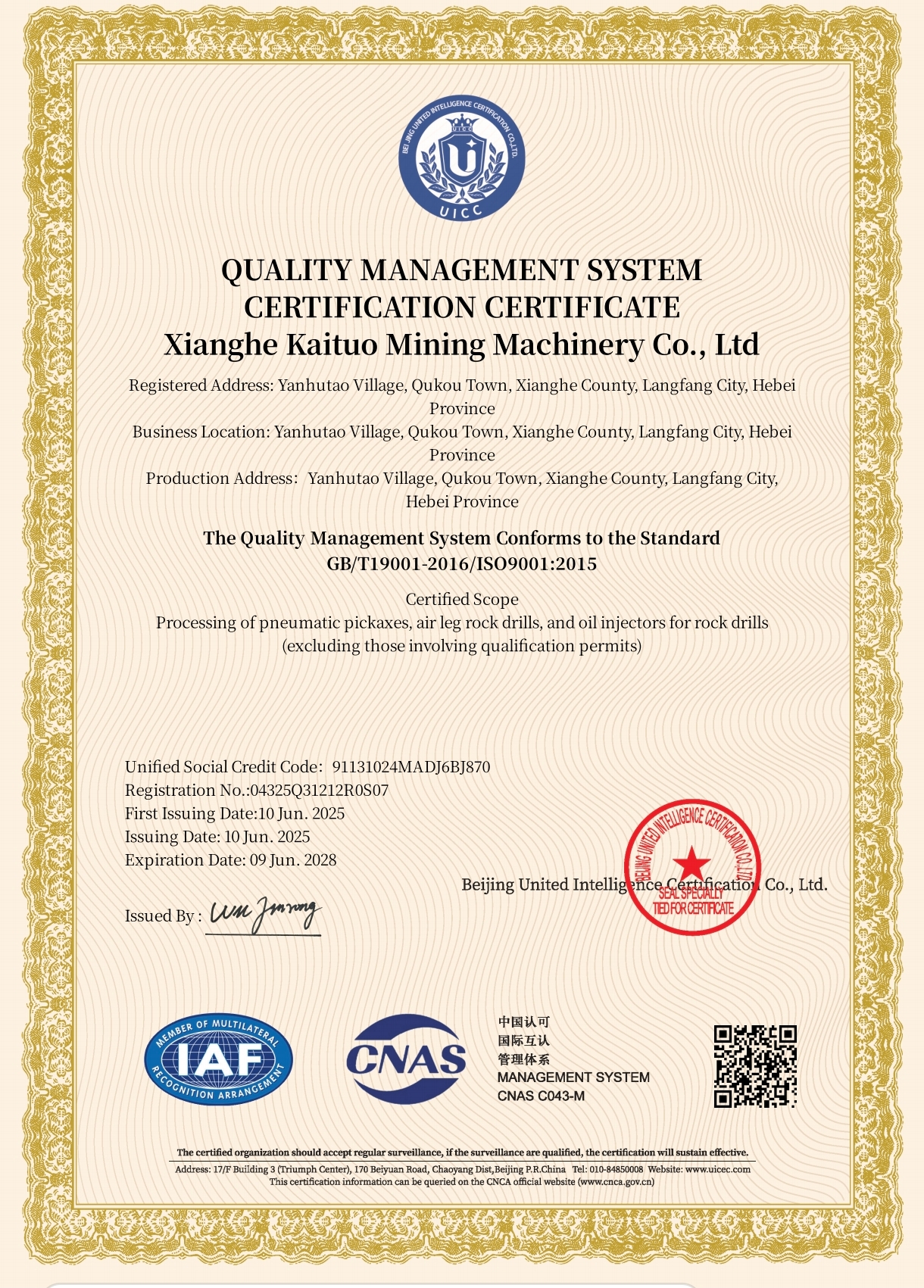

ISO 9001

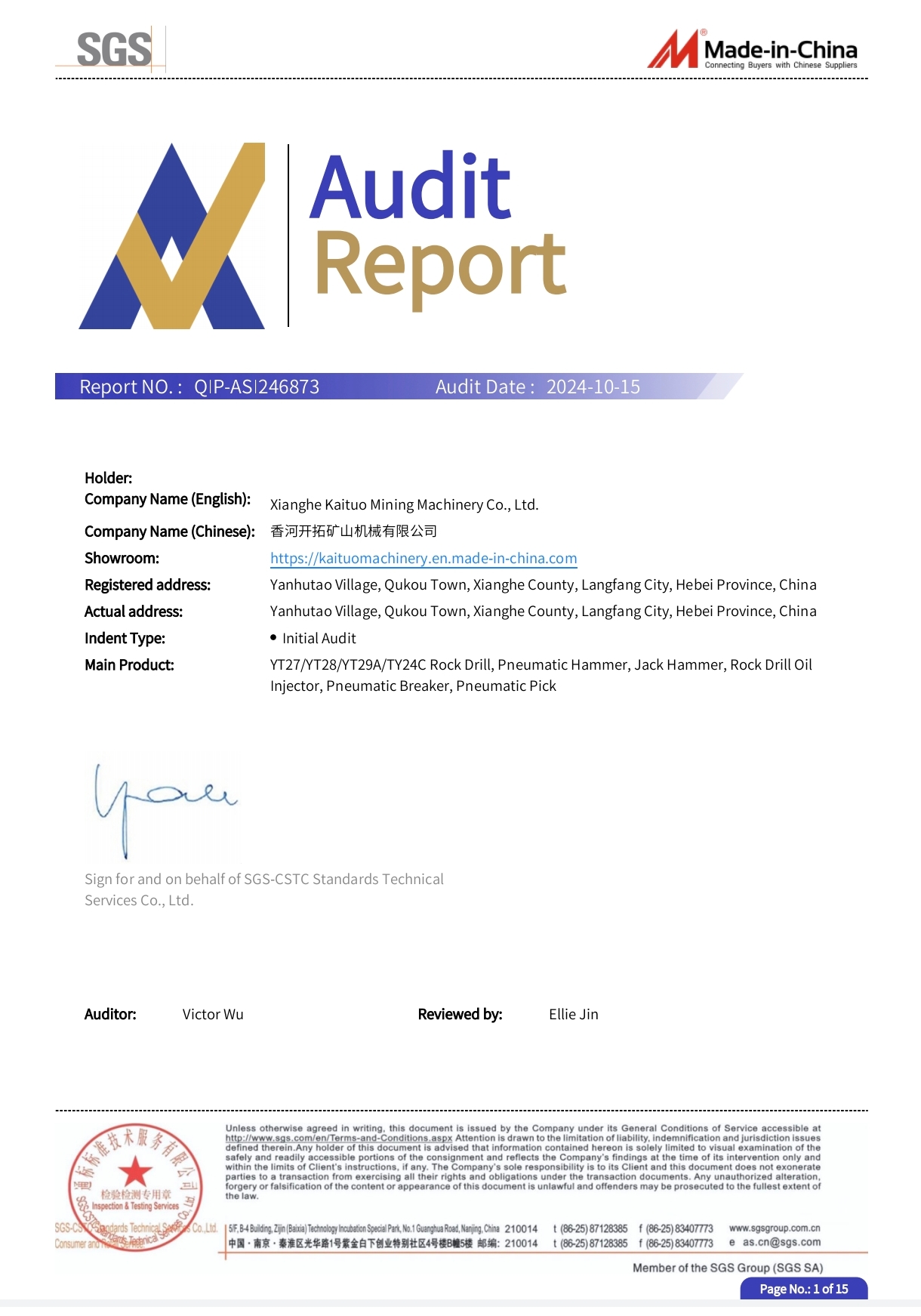

SGS certification

Pneumatic pick is lighter, more flexible and convenient operation. It’s suitable for operation all around of work, especially in narrow space, upper or climbing direction.

It can stop working automatically when the solid object is broken.

It’s widely used in coal mining, soft rock, digging digging slots, breaking concrete, frozen earth in constructionand installation engineering or constructing

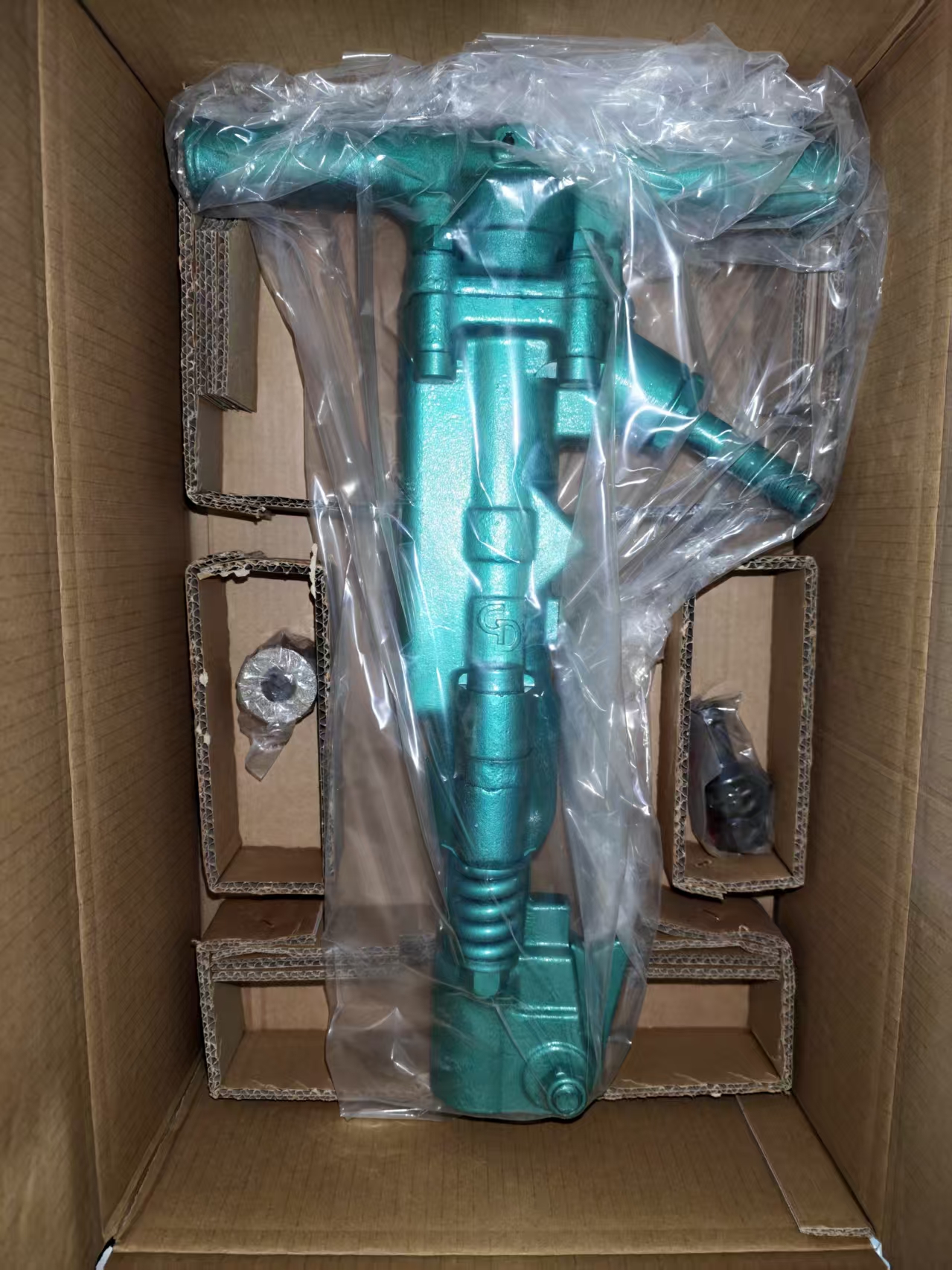

Packaging Display

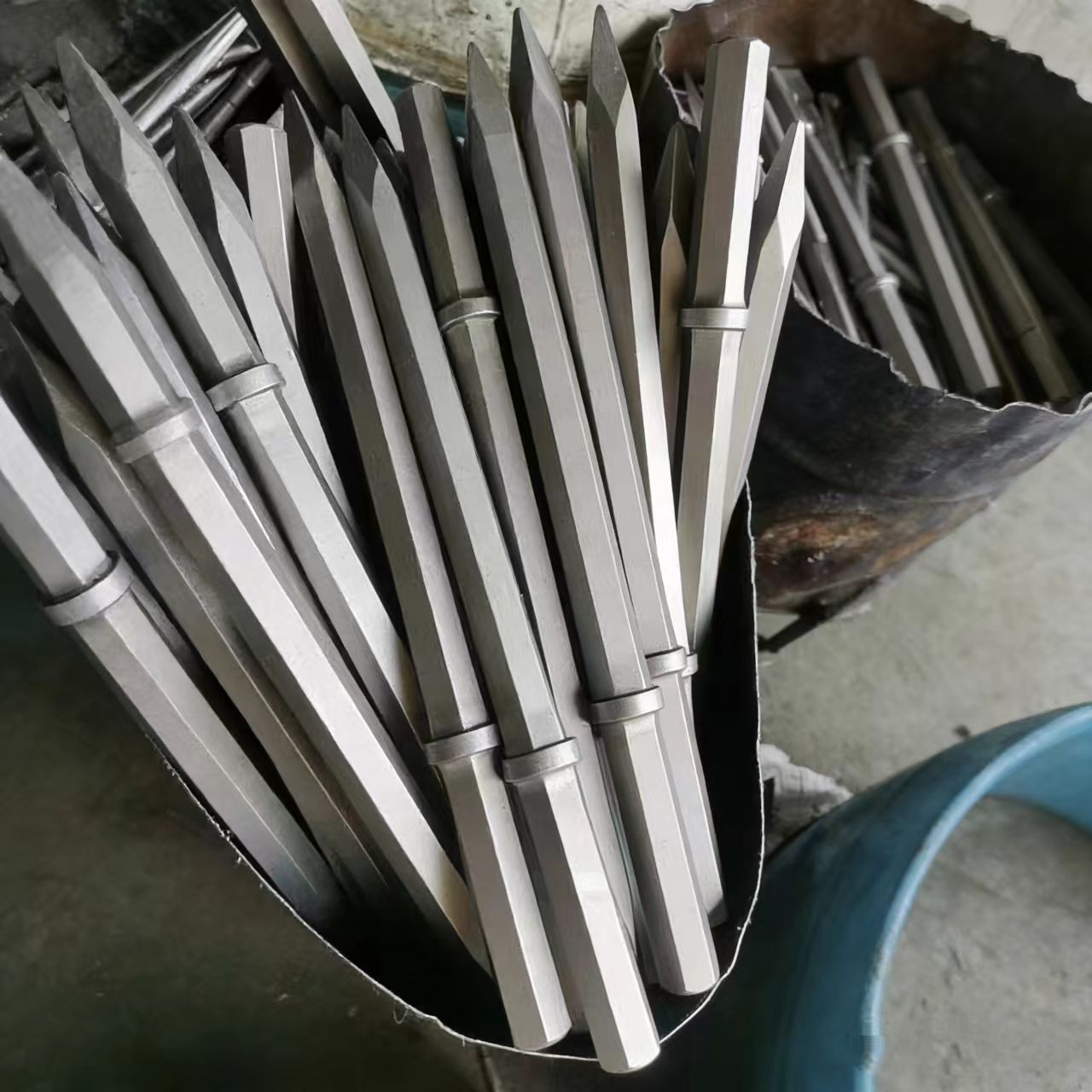

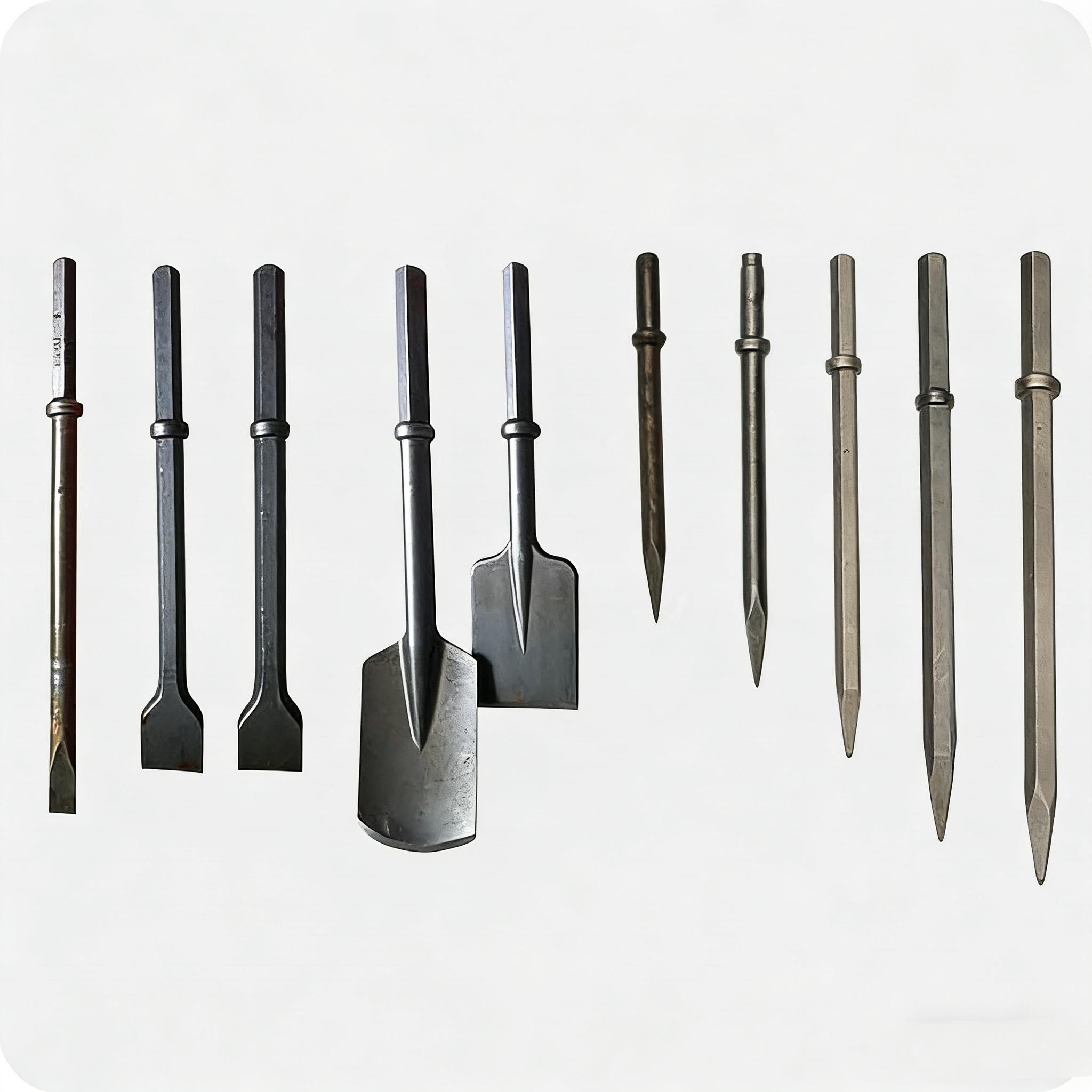

Type of pick and chisel

We offer accessories for purchase

HIGH QUALITY PRODUCT ACCESSORIES ARE INTERNATIONALLY RECOGNIZED

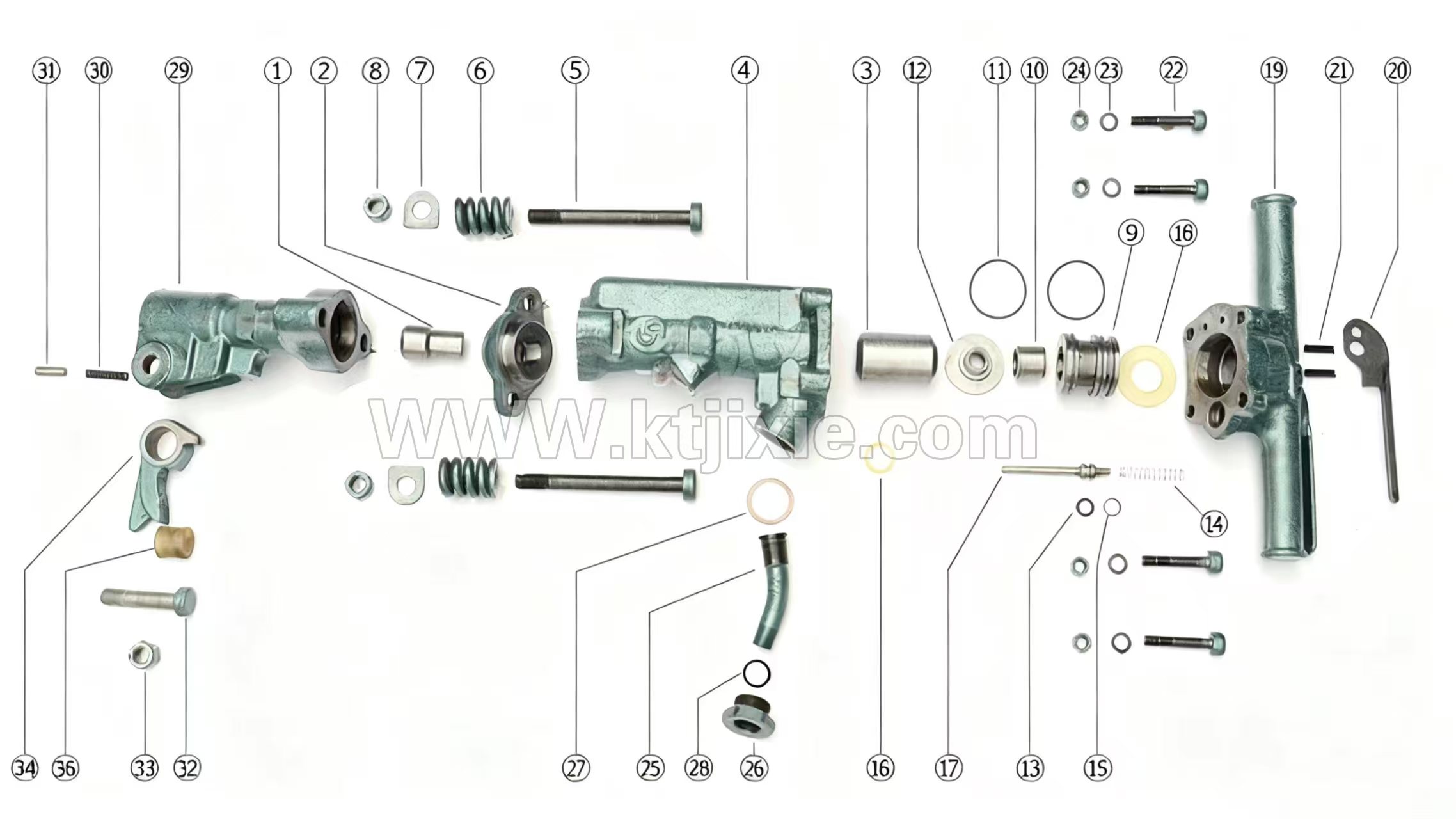

B47

1

垫锤/Tappet

2

导套/Tappet bushing

3

锤体/Hammer

4

缸体/Cylinder

5

螺栓/Sied rod

6

弹簧/Spring

7

止退垫/lock Washer

8

螺母/Nut

9

阀柜/Valve Chest

10

阀/Valve

11

O型密封圈/O-Ring

12

阀盖Nalve Cap

13

密封套/Ring

14

阻塞弹簧/Clogged Spring

15

卡环/Reataining Ring

16

垫/Seal

17

推杆/Plunger

18

压紧垫/Clamping Pad

19

柄体/Back Head

20

压柄/Throttle Handle

21

弹性圆柱销/Roll Pin

22

螺杆/Sied Rod

23

弹性垫圈/Elastic Washer

24

螺母/Nut

25

进气管/Aircon Tube

26

气管螺母/Air Pipe Nut

27

垫/Seal

28

O型密封圈/O-Ring

29

机头/Front Head

30

弹簧/Spring

31

顶销/Kock Pin

32

钎卡螺栓/Drill Lock Bolt

33

螺母/Nut

34

钎卡/Steel Reatainer

35

胶套/Gum Cover

Price Advantage

As an integrated industry and trade enterprise, we are factory direct sales to ensure that you receive the best value!

Could you provide some spare parts for the machine?

Yes, we have a large stock of spare parts.

How long will it take to deliver?

As the manufacturer, we expedite production as soon as your order is confirmed. For items in stock, anticipate delivery within 15 days. Larger orders might take up to 30 days.

What terms of payment do you accept?

We generally accept T/T payments. For T/T, a 30% deposit is required upfront, with the remaining 70% due prior to shipment.

How long are your prices valid?

Our pricing is reliably stable throughout the year as a reputable manufacturer. Adjustments are only made under two conditions: (1) Fluctuations in the U.S. dollar exchange rate; (2) Increases in labor or raw material costs necessitating price adjustments.

What logistics can you use for transportation?

We utilize three primary modes of freight transport (1) A significant 80% of shipments travel by sea to continents including Africa, South America, and the Middle East. (2) Landlocked neighboring countries receive shipments via road or rail.(3) For urgent, lightweight spare parts, we offer the option of air transportation.

Freight Forwarding

If you have shipping agent in china. please let your agent contact us.

Services

Deliver it to the warehouse which you have requested . We will tell you logistic or express tracking number
